The YOOGU kitchen and bathroom series is a set of green and environmentally friendly waterproof systems developed for home decoration and renovation projects. It is a seamless waterproof system composed of polyester cloth with three coatings and one cloth.The waterproof coating is a 100% pure acrylic polymer formula, which conforms to the two national standards of "Limit of Hazardous Substances" and "Safety Evaluation Standards for Drinking Water", and can be directly in contact with drinking water.The product is environmentally friendly, non-toxic, odorless, water-resistant, friction-resistant, tightly enclosed and durable, and has amazing adhesion. It will not peel off after bonding with glass. It is the preferred product for drinking water engineering, exterior wall engineering, kitchen and bathroom and home improvement engineering.Through the organic combination of the rigidity of the primer coating of the waterproof material and the flexibility of the surface coating, a rigid and soft coating film is formed, which maximizes the adhesion, compactness, ductility and other physical and chemical properties of the coating, and effectively improves the waterproof and wear-resistant effects of the coating. At the same time, it provides an ideal base environment for the pasting of surface tiles, and provides a perfect system solution for home improvement waterproof from the inside out.

All indicators are in line with the national drinking water and interior decoration materials limit testing standards for hazardous substances；

Green and environmentally friendly, non-toxic, odorless, pollution-free, water-resistant, friction-resistant, tightly enclosed and durable, excellent corrosion resistance, aging resistance, weather resistance, adhesion, etc., never fall off；

It can be used as an interface material for exterior walls, especially for the restoration of reservoirs and swimming pools. There is no need to remove the original mosaics and ceramic tiles. Just wash the surface and use the system directly, which saves maintenance costs and is efficient.；

The service life is up to 20 years, and the quality is guaranteed for 6 years.；

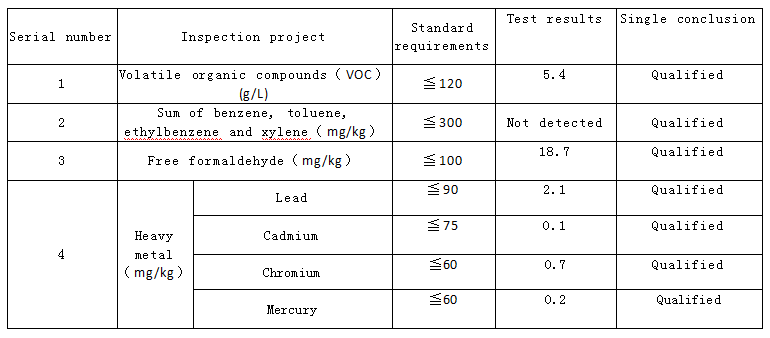

limit index of harmful substances

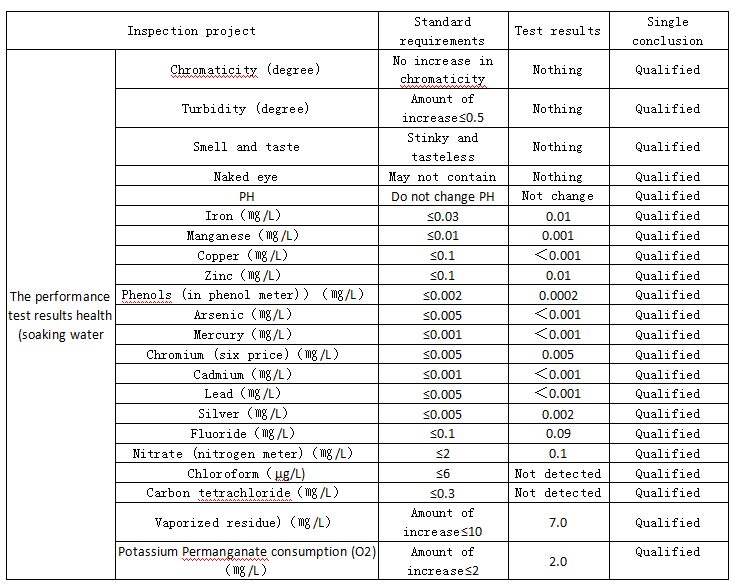

Table 2 safety indicators for water supply and distribution equipment and protective materials for domestic drinking water

Suitable for basements, swimming pools, kitchens, toilets, exterior wall waterproofing, etc.It can also be used as an interface material for exterior walls.

1. Substrate Pre-treatment

During construction, first carefully and thoroughly clean the working surface. Ensure the substrate is flat, fixtures are secure, free from loose mortar, oil, dust, and free water, keeping it clean. Loose fixtures or mortar on the substrate must be cleaned, replaced, or reinforced. If the substrate mortar shows signs of powdering, re-lay the mortar layer or apply a special concrete interface agent until the surface is smooth, flat, and free from powdering.



2. Mixing Method

The products used in this system are pre-proportioned and packaged. Please follow the mixing instructions on the back of the packaging bucket. Open the plastic bucket and remove all the inner packaged raw materials. First, pour the liquid material into the plastic bucket, then slowly add the powder material into the bucket while stirring with an electric mixer until no lumps remain. Let the slurry sit and mature for about 3 minutes, then stir again for about 30 seconds before use. Use the mixed slurry within 45 minutes.



3. Construction Process

(1) Before construction on a dry substrate, first moisten the substrate until no free water is present, then proceed with construction.

(2) First Coat: Apply one coat of YOOGU Kitchen and Bath Special Waterproof Base Slurry on the cleaned and prepared substrate until it dries and sets.

(3) Second Coat: After the previous coat has dried and set, apply one coat of YOOGU Kitchen and Bath Special Waterproof Middle Slurry. The length of each coating operation should not exceed 30 cm to avoid affecting the adhesion of the next process due to rapid drying of the slurry.

(4) One Layer of Fabric: While the previous coat is still fully wet, quickly and naturally lay the pre-cut polyester fabric onto the coating, ensuring the fabric fully integrates with the slurry, without wrinkles or air bubbles, while maintaining some slack.

(5) Third Coat: Immediately while the polyester fabric surface is still wet, apply one coat of YOOGU Kitchen and Bath Special Waterproof Middle Slurry, ensuring the slurry is even, full, without missed spots, and with tight sealing around the edges, allowing it to integrate with the previous coat until dry and set.
