Scope Of Application

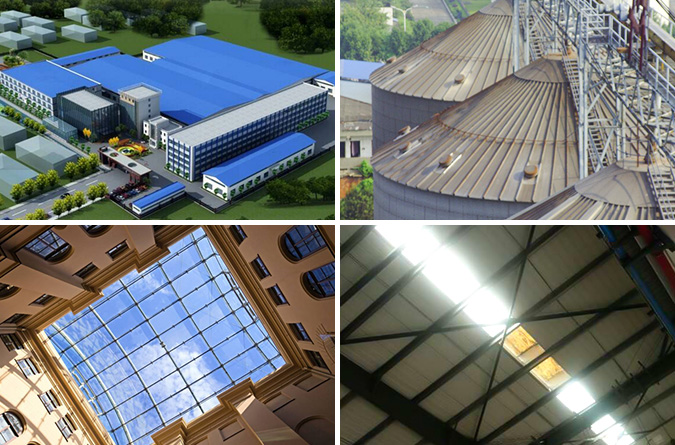

Metal materials (color steel tiles, oil tanks, gas tanks, pipelines, etc.), glass, lighting tiles, aluminum-plastic panels, sun panels, EPDM, PVC, SBS, concrete roofs and storage granaries, etc.

Product Description

The YOOGU thermal insulation layer is composed of a thermal insulation base layer and a thermal insulation surface coating, and after curing, it forms a thermal insulation system. The thermal insulation material is a high-efficiency thermal insulation coating made of imported 100% pure acrylic polymer emulsion and added fine auxiliary materials. It has a good alveolar function and can reflect 85% of solar energy and heat energy, up to 95% of the emissivity, and can quickly dissipate the heat gathered on the roof. It has an extremely low thermal conductivity coefficient, which can effectively prevent the transfer of heat energy from outdoors and indoors, thereby producing a heat insulation and cooling effect. It can generally reduce the temperature of the roof surface by about 25 degrees. The thermal insulation coating does not require a protective layer, and it is strongly bonded to the substrates of various materials, and has a long service life. Its green and environmentally friendly products with stable quality, water-based, non-toxic, odorless, non-combustible and corrosion-free quality, is the most extensive heat insulation product in China.

Product Features

It can reflex 85% of the solar energy and heat energy, and up to 95% of the emissivity, which can quickly dissipate the accumulated heat from the roof and keep the roof cool. It has good heat insulation effect, and can generally reduce the roof temperature by about 25°C and reduce the indoor temperature by about 5°C, greatly reduce the indoor air conditioning load and save 20-70% of the air conditioning cost. Liquid cold construction is convenient and fast, and can adjust any color according to customer requirements. It has water-based coatings, low odor, no harm to human health and the environment, and is energy-saving and environmentally friendly.

Technical Reference

Standard Construction Process

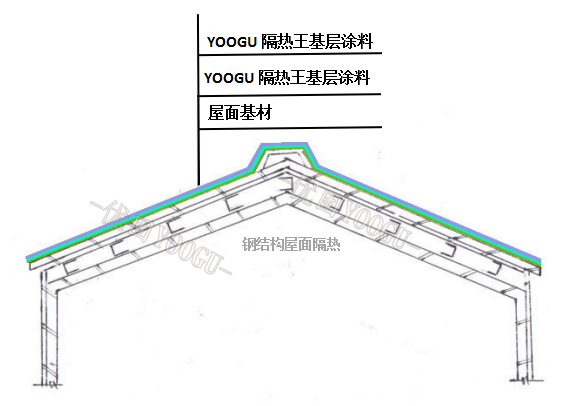

Material composition

YOOGU Yougu Thermal Insulation King Base Layer Coating------used for bonding with the base layer and heat resistance;

YOOGU thermal insulation king surface coating------Used for the surface to resist ultraviolet radiation, has a reflection function; can reduce indoor temperature, and has the self-cleaning effect of reducing dust and dirt adhesion.

Construction technology

1. Base surface treatment: When cleaning up the roof garbage and dust, it is necessary to ensure that the base surface firmware is not loose, and that the roof is clean and firm, dry, flat, oil stains, rust or frozen matter, and water seepage.

2. First, open the YOOGU Yougu Heat Insulation King base coating, stir evenly and use it. Apply/roll-layer YOOGU heat insulation king base coating in areas where heat insulation is required to ensure uniform coating and no bottoming is found.

3. After the base coating is dry (about eight hours), apply/spray/roll-coat-layer YOOGU high-core thermal insulation king surface coating, and finally wait for the surface thermal insulation coating to dry.

4. Organize acceptance.

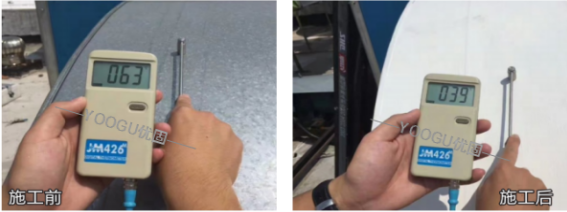

Inspection before and after thermal insulation construction:

Case Construction Comparison
